Sliding button operated Quick Couplers and accessories
Connection
STEP nr.1
Cut the pipe with a cutter to a distance of 30±2 mm from the manifold. Remove burrs from pipe.
STEP nr. 2
Push the pipe into the quick coupler up to the end of stroke.
End of stroke for PE-X/PER-T pipe
Ø 12 = 63 mm
Ø 14 = 63 mm
Ø 16 = 63 mm
Ø 17 = 63 mm
Ø 18 = 63 mm
Ø 20 = 63 mm
End of stroke for Multilayer pipe
Ø 16 = 52 mm
Ø 17 = 52 mm
Ø 20 = 52 mm
STEP nr. 3
Push the quick coupler up while it slides onto the pipe.
Release
Press the button and remove the quick coupler sliding on the pipe.

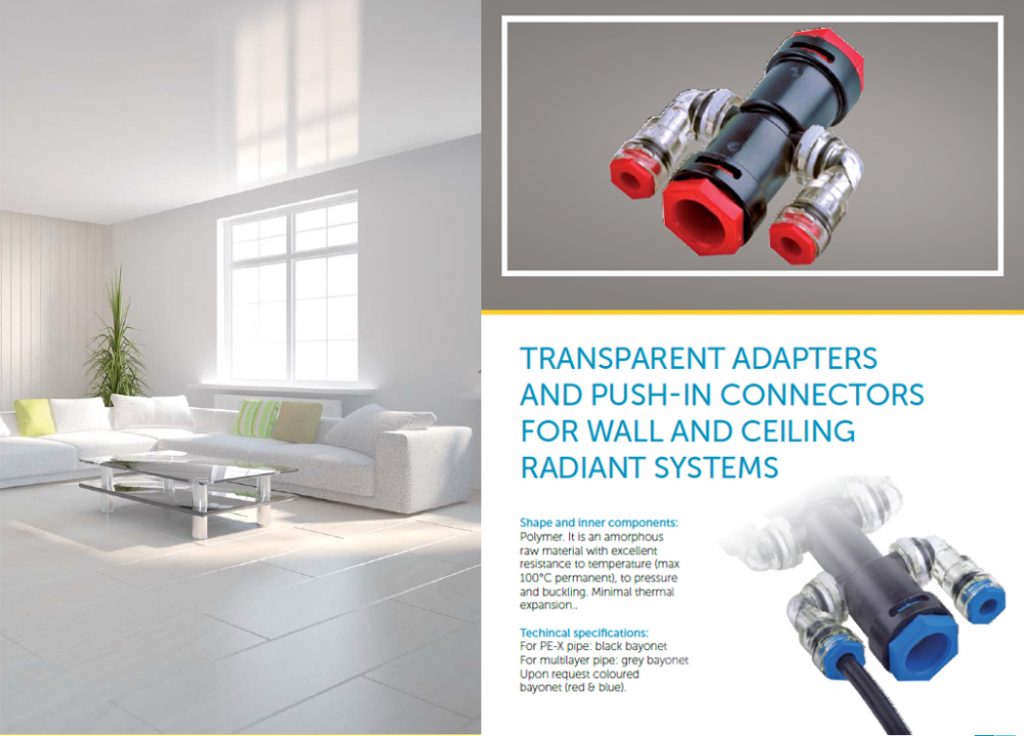

Accessories range examples
For further information and technical specifications See PDF
